Why the LSF (Light Steel Frame) System?
Advantages of the LSF System in Northern Tehran
Superior Seismic Resistance (Safety):
The area north of Tehran, situated at the foot of the Alborz Mountains, is a high-seismic-risk zone.
Strength-to-Weight Ratio:
Cold-formed light steel boasts an unbeatable strength-to-weight ratio.
Inertia Reduction:
Being significantly lighter than traditional reinforced concrete, the inertial forces generated during an earthquake are drastically reduced. The structure "sways" and absorbs energy without suffering structural collapse.
Logistics and Construction in Mountainous Terrain:
Plots on the slopes of Tehran often present enormous logistical challenges for transporting heavy materials.
Pre-engineered Components:
LSF profiles arrive on-site pre-engineered, numbered, and ready for assembly.
Site Preservation:
The reduced weight of the components facilitates transport along winding roads and minimizes the need for heavy cranes or massive excavations for heavy foundations, thereby preserving the stability of the surrounding terrain.
Exceptional Thermal Insulation (Energy Efficiency):
Northern Tehran experiences very harsh winters and hot summers.
Sandwich" Walls:
The LSF construction system allows for the creation of wall assemblies where the entire wall cavity is filled with insulating material (rock wool, EPS, etc.), effectively eliminating thermal bridges.
Performance:
This ensures exceptional thermal comfort within the villa, significantly reducing heating and cooling costs despite the extensive glass surfaces.
Why the LSF (Light Steel Frame) System?
Architectural Freedom and Large Spans:
The villa’s design demands massive cantilevers, flat roofs, and seamless visual continuity through expansive glazing.
Structural Integration:
Integrating steel trusses with the LSF system allows for covering large spans without the need for intermediate pillars, maintaining an open-plan layout and enabling the suspended geometric cantilevers that define the signature style of Tedone Construction & Investment.
Speed and Millimetric Precision:
The construction season in Tehran's mountainous areas can be restricted by winter weather.
Dry Construction:
As a "dry" assembly system, construction time is reduced by up to 60% compared to brick or concrete, allowing for the building envelope to be enclosed before the onset of the first snowfall.
Project Note:
The combination of the lightness of the Light Steel Frame and the aesthetic elegance of the expansive glazing maximizes the unique panorama of the Iranian mountains, establishing this villa as a benchmark for sustainable, luxury construction in the region.
Bridging Heritage and Innovation:

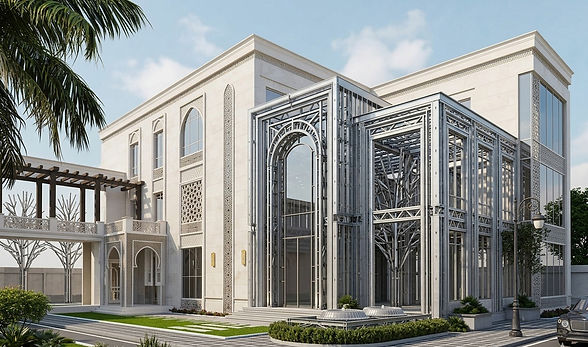

A Modern Islamic Landmark in Mashhad Crafted with Light Steel Framing (LSF)

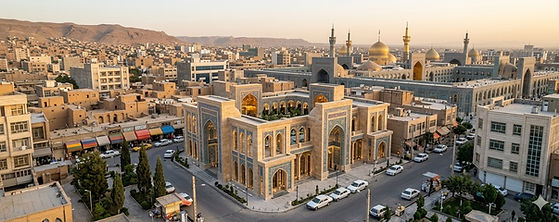

We are proud to share a technical overview of our latest architectural and engineering project located in the historic and spiritual heart of Mashhad, Iran. Situated near the holy precinct of the Imam Reza Shrine, this cultural and hospitality complex stands as a flawless synthesis of traditional Islamic grandeur and vanguard structural engineering.
By harmonizing the monumental language of the past with Light Gauge Steel Framing (LGSF), the project sets a new benchmark for sustainable, resilient, and structurally complex architecture in dense historic urban centers.
The Architectural Concept: Honoring the Context
Mashhad’s sacred urban fabric is world-renowned for its bulbous domes, slender minarets, and monumental entrance iwans. This design honors that rich morphology through:
-
Symmetry and Proportion: Adopting the classical rhythm of solid and void (pieno e vuoto) characteristic of historic Khurasani and Andalusian architectural schools.
-
The Grand Central Iwan: A majestic, double-height portal that acts as a monumental threshold, framing views and establishing a continuous visual dialogue with the neighboring shrine complex.
The Engineering Rationale: Why LGSF?
To overcome the severe seismic, logistical, and climatic challenges of the site, the engineering team opted for Light Gauge Steel Framing (LGSF) also known as cold-formed steel (CFS)—over traditional concrete or masonry.
1. Advanced Seismic Resilience
Northeastern Iran is a zone of high seismic vulnerability. Because lateral seismic forces are directly proportional to a building’s dead load (F=m⋅a), LGSF’s high strength-to-weight ratio drastically reduces structural self-weight. The hyperstatic network of cold-formed C-channels, U-tracks, and diagonal strap bracing forms an elastic, highly ductile cage capable of absorbing and dissipating seismic energy safely.
2. Digital Precision for Complex Islamic Motifs
As demonstrated in our structural schematics, LGSF allows for millimeter-precision modeling of complex historic geometries. Utilizing advanced BIM and CAD/CAM software, intricate pointed ogival arches, Moorish horseshoe arches, and expansive iwan spans are CNC-milled and pre-punched in a factory setting. This completely eliminates the need for slow, expensive timber formwork or heavy masonry corbeling.
3. High-Efficiency Urban Logistics
Building in a dense center visited by millions of pilgrims annually requires minimal site disruption. LGSF is an entirely dry construction system. Components arrive pre-labeled and ready for rapid assembly using self-piercing screws. This cuts the overall construction schedule by 60% to 70% compared to cast-in-place concrete, eliminating curing times and drastically reducing traffic, dust, and noise pollution in the historic center.
4. Superior Thermal Envelope Performance
Mashhad experiences extreme thermal fluctuations, with scorching summers and sub-zero winters. The stud cavities within the LGSF exterior walls are packed with continuous high-density insulation (rockwool/polyisocyanurate) and paired with external thermal breaks. This eliminates thermal bridging, achieving an exceptionally low U-value that minimizes life-cycle operational energy for heating and cooling.
Conclusion
Light Gauge Steel Framing proves that we do not have to sacrifice historical beauty for modern efficiency. By wrapping a lightweight, seismically secure, and digitally fabricated steel "core" in the noble materials of Mashhad’s heritage—local stone, brickwork, and intricate glazed tile mosaics—we have created a monument that is deeply rooted in history, yet propelled by the future of engineering.

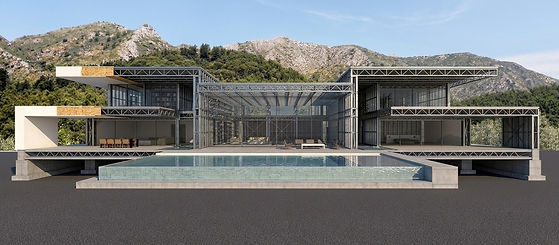

This project, located in the exclusive, mountainous area north of Tehran, Iran (a region characterized by steep slopes, a continental climate with significant temperature fluctuations, and a high seismic hazard classification), represents a perfect fusion of avant-garde minimalist architecture and modern structural engineering.
The use of Light Steel Frame (LSF) technology for a villa of this scale and architectural complexity offers extraordinary strategic advantages, which are crucial for the specific geographical context.
Advantages of the LSF System in Northern Tehran
1. Superior Seismic Resistance (Safety) The area north of Tehran, situated at the foot of the Alborz Mountains, is a high-seismic-risk zone.
-
Strength-to-Weight Ratio: Cold-formed light steel boasts an unbeatable strength-to-weight ratio.
-
Inertia Reduction: Being significantly lighter than traditional reinforced concrete, the inertial forces generated during an earthquake are drastically reduced. The structure "sways" and absorbs energy without suffering structural collapse.
2. Logistics and Construction in Mountainous Terrain Plots on the slopes of Tehran often present enormous logistical challenges for transporting heavy materials.
-
Pre-engineered Components: LSF profiles arrive on-site pre-engineered, numbered, and ready for assembly.
Site Preservation: The reduced weight of the components facilitates transport along winding roads and minimizes the need for heavy cranes or massive excavations for heavy foundations, thereby preserving the stability of the surrounding terrain
Exceptional Thermal Insulation (Energy Efficiency) Northern Tehran experiences very harsh winters and hot summers.
-
"Sandwich" Walls: The LSF construction system allows for the creation of wall assemblies where the entire wall cavity is filled with insulating material (rock wool, EPS, etc.), effectively eliminating thermal bridges.
-
Performance: This ensures exceptional thermal comfort within the villa, significantly reducing heating and cooling costs despite the extensive glass surfaces.
Architectural Freedom and Large Spans The villa’s design demands massive cantilevers, flat roofs, and seamless visual continuity through expansive glazing.
-
Structural Integration: Integrating steel trusses with the LSF system allows for covering large spans without the need for intermediate pillars, maintaining an open-plan layout and enabling the suspended geometric cantilevers that define the signature style of Tedone Construction & Investment.
-
5. Speed and Millimetric Precision The construction season in Tehran's mountainous areas can be restricted by winter weather.
-
Dry Construction: As a "dry" assembly system, construction time is reduced by up to 60% compared to brick or concrete, allowing for the building envelope to be enclosed before the onset of the first snowfall.
Project Note: The combination of the lightness of the Light Steel Frame and the aesthetic elegance of the expansive glazing maximizes the unique panorama of the Iranian mountains, establishing this villa as a benchmark for sustainable, luxury construction in the region.
